In today’s tech-heavy world, we rely heavily on electrical devices—from our workstations to smart appliances and entertainment systems. While these devices enhance our lives, they are all vulnerable to a hidden danger: power surges.
These surges can come out of nowhere, disrupting everything from your refrigerator to your computer, potentially frying sensitive components in seconds. This is where a whole-house surge protector (WHSP) comes in—a defense mechanism that keeps your electronics safe from electrical surges.
Contents
What Are Power Surges and Why Should You Care?
Before diving into how a whole-house surge protector works, it’s essential to understand the danger of power surges. A power surge, or transient voltage, is a sudden spike in the electrical current that can damage anything connected to the grid. These surges can be as brief as the blink of an eye but carry enough energy to destroy your devices.
Internal vs. External Power Surges: What’s the Difference?
Surges come from two main sources: internal and external.
- Internal surges are the more common culprits. These happen when large appliances, like your refrigerator or air conditioner, cycle on and off. These devices draw a large amount of power, creating temporary voltage fluctuations that affect other devices on the same circuit. Although these surges may seem small, over time, they can degrade the components of your electronics, slowly shortening their lifespan. Think of it like slow wear and tear—subtle but damaging in the long run.
- External surges are much more dangerous. These typically come from outside your home, usually from lightning strikes or power grid malfunctions. For instance, if a lightning strike hits a nearby power line or transformer, it can send a surge of thousands of volts into your home’s electrical system. Unlike the minor fluctuations caused by household appliances, these surges can instantly fry your electronics, causing severe damage that could lead to costly repairs or replacements.
I learned this lesson the hard way after a lightning storm knocked out my computer and home entertainment system in a matter of seconds. Thankfully, I had a surge protector installed, but the damage was already done—some devices were too far gone, and the data I lost was irretrievable. Since then, I’ve made sure to use a whole-house surge protector.
How Power Surges Damage Your Electronics
Power surges send excessive voltage through your electrical system, creating heat and pressure that can damage the delicate components inside devices, like microprocessors, circuit boards, and memory chips. In extreme cases, surges can cause devices to shut down completely, resulting in data loss, costly repairs, or, in rare cases, electrical fires. It’s like a slow-burning fire—hard to notice at first but devastating when it finally erupts.
What Is a Whole House Surge Protector (WHSP)?
A whole-house surge protector (WHSP) is an all-encompassing defense device that safeguards the entire electrical infrastructure of your home from power surges. Unlike a plug-in surge protector, which only covers devices connected to it, a WHSP works by protecting your whole house’s wiring system.
The Function of a Whole House Surge Protector

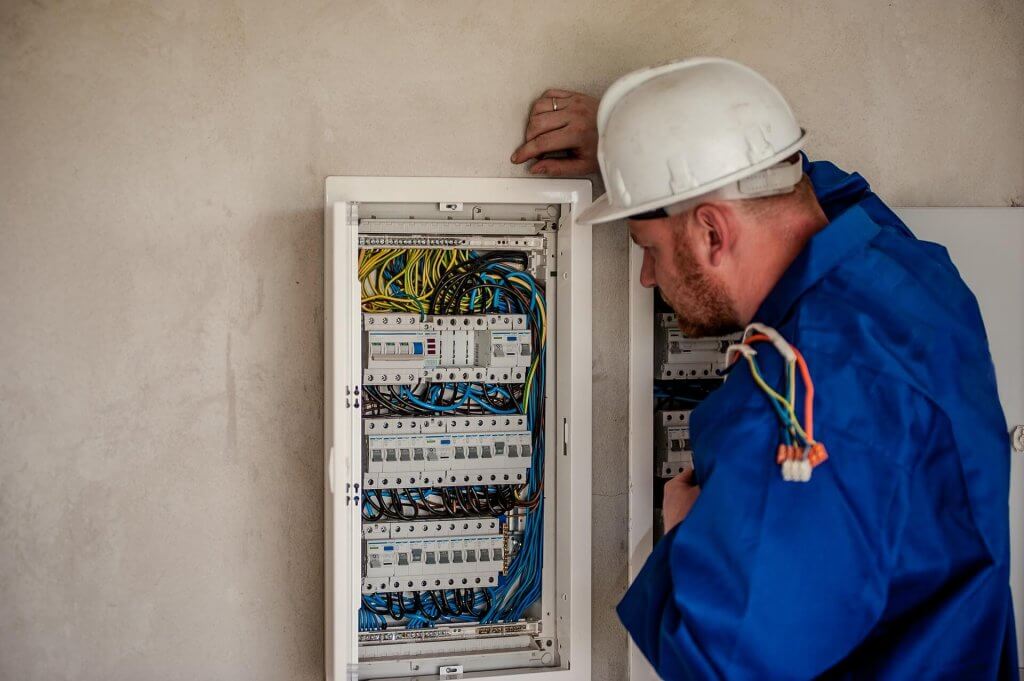

A WHSP is typically installed near your main electrical panel (also known as the breaker box) or the electricity meter. Unlike the smaller, more common plug-in surge protectors, a WHSP works on a much larger scale, preventing surges from entering the home’s wiring system. This means every device and appliance connected to your home’s electricity is covered.
When I first got my WHSP installed, I was amazed by how it worked without me having to do a thing. The system silently monitors the voltage levels, ensuring that when a surge happens, it gets diverted safely away from your precious electronics.
Surge Protection Devices (SPDs): Types and Their Role
Surge protection devices (SPDs) come in different types, each with its role in protecting your home’s electrical system.
- Type 1 SPD (Service Entrance Surge Arrestor): This is the heavy hitter. Installed at the service entrance, typically before the main distribution panel, Type 1 SPDs are built to absorb extreme surges, such as those caused by lightning strikes or major power grid issues. These devices intercept the surge as soon as it enters the home’s electrical system.
- Type 2 SPD (System Surge Protector): Installed within the main electrical panel, this device protects against more moderate surges, such as those caused by appliances turning on or off. It is faster at reacting to surges than Type 1 devices, ensuring that minor spikes don’t reach your sensitive electronics.
- Type 3 SPD (Point-of-Use Protector): This is the classic plug-in surge protector you use for devices like your TV or computer. While effective for protecting against small, residual surges, they don’t provide the full protection that a whole-house system can.
How Does a Whole House Surge Protector Work?
The key to understanding how a WHSP works is to know how it detects and handles surges in real-time.
Surge Detection: The First Line of Defense
A WHSP continuously monitors the voltage levels in your home’s electrical system. Under normal conditions, when voltage is stable (around 120V in the U.S.), the surge protector remains inactive, allowing the electricity to pass freely through your system. But when a surge is detected, the device springs into action.
The most common component used in these systems is a Metal Oxide Varistor (MOV). When the voltage spikes above a preset threshold, the MOV rapidly changes its internal resistance and conducts the excess voltage away from the electrical system. This response happens in nanoseconds—extremely fast, preventing any serious damage.
Clamping and Shunting: Containing the Excess Voltage
Once the surge is detected, the device clamps the excess voltage to a safe level, usually around 600V or less, depending on the type of protector. It does this by creating a low-resistance path, shunting the excess voltage away from your circuits and diverting it safely into the grounding system.
I recall when my neighbor’s house was hit by a massive surge during a summer storm. The whole house was protected by an SPD, and while their outdoor appliances suffered a hit, their main electrical system remained intact. The grounding system played a huge role in safely dissipating the energy.
Grounding: Safely Diverting Excess Energy
To safely divert the excess current, the WHSP sends the voltage to the grounding wire. This wire connects to a grounding rod buried deep in the earth. The earth itself acts as a giant sink, allowing the surge energy to dissipate quickly and safely into the ground, preventing it from traveling through your home’s electrical system.
Comprehensive Protection for Your Entire Home
A crucial advantage of a WHSP is its ability to protect your entire electrical system, including hard-wired appliances that don’t use plug-in surge protectors. This includes essential systems like your HVAC, water heater, and electric stove—devices that can’t be plugged into a traditional surge protector.
Selecting the Right Whole House Surge Protector
Choosing the right WHSP isn’t as simple as picking the first one you find. Several factors need to be considered to ensure your home is adequately protected.
Surge Current Rating: How Much Power Can It Handle?
One of the most important specs to consider is the surge current rating. This rating determines how much energy the SPD can safely absorb. Since lightning strikes can generate surges ranging from 5,000 to 30,000 amps, look for a device that can handle at least 40,000 amps for optimal protection.
Joule Rating: The Key to Long-Term Protection
The joule rating measures the total amount of energy the surge protector can absorb before it fails. The higher the joule rating, the more protection the device offers. For valuable or sensitive electronics, aim for a protector with a rating of at least 2,000 joules.
Clamping Voltage: How Quickly Does It Respond?
The clamping voltage is the level of voltage that triggers the protector to kick in. The lower the clamping voltage, the quicker it reacts, and the better it protects your devices. A clamping voltage of 330V or 400V is ideal for sensitive electronics.
UL Certification: Ensuring Quality and Safety
Ensure the surge protector is certified with UL 1449, the safety standard for transient voltage surge suppressors. This certification ensures the device meets rigorous safety and performance standards.
The Limitations of Whole House Surge Protectors
While a WHSP is a powerful tool, it isn’t foolproof. There are some limitations you should be aware of:
- Direct lightning strikes can still overwhelm even the best surge protectors.
- Voltage sags or brownouts are outside the scope of surge protection. A UPS (Uninterruptible Power Supply) is needed to tackle these issues.
- Data lines (Ethernet, coaxial, etc.) are not protected by a WHSP unless specifically designed to cover them.
The Lifespan and Maintenance of Whole House Surge Protectors
Surge protectors are sacrificial devices. Each time they absorb a surge, they lose a little bit of their protective ability. Over time, the components degrade, and the surge protector’s effectiveness diminishes.
Most WHSPs last between 3 to 5 years. Regular inspection is essential, and many devices have an indicator light showing whether they’re still functioning. Replace the device immediately if the light goes out or after a major surge event.
Conclusion: Why a Whole House Surge Protector Is a Smart Investment
A whole-house surge protector is one of the best investments you can make to safeguard your home’s electrical system and protect your valuable electronics from the unpredictable nature of power surges. With the right WHSP installed, you can rest easy knowing that your devices are shielded from electrical disasters, keeping your home running smoothly for years to come.
